Product series name Modern

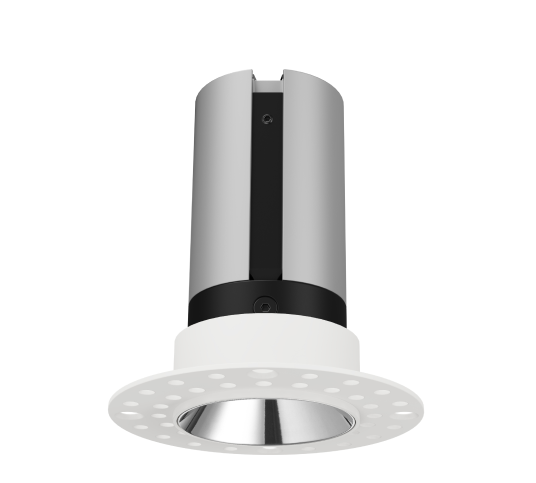

Product model AW12550

Request now: AW12550 for your next project

We will be happy to provide you with an offer, support you with sampling and be available to answer specific planning questions.

Your data will be handled confidentially. For further information see Data protection declaration.

Dispatch request

Product Details

Indoor Lights

Downlight

IP20、IP54

COLOUR(housing)：White/Black

Material: Aluminum

LED

6W、8W、8.5W、9W、 9.5W、10W、10.5W

2700K, 3000K, 4000K, 4500K，5000K，2700-6000K

CRI≥90

Optics

Optical Tilt 5° (Beam angle 23° x 25° )

Control

ON/OFF

DALI

0/1-10V

TRIAC

Product description

All components are metal,including reflectors;

35mm can do 6W&8W, 15D narrowest;

Can change optics/accessories onsite easily.

Great delivered lumen efficiency;

Multiple beam angles available for each model;

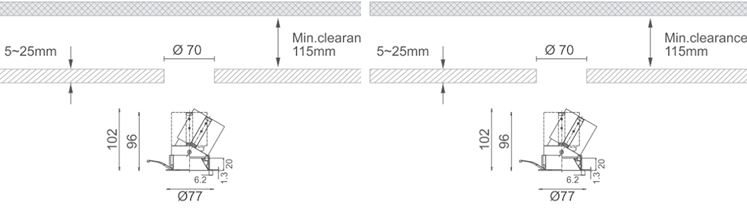

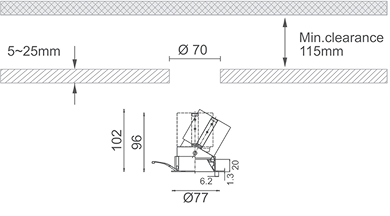

Product Size

Product Details

LED Power	System Power	LED Output	System Output	Beam	CCT	CRI	Drive
6W	7W	484lm	352lm	6°	3000K	＞90	12V 500mA
6W	7W	484lm	352lm	6°	3000K	＞90	12V 500mA
6W	7W	484lm	352lm	6°	3000K	＞90	12V 500mA
6W	7W	484lm	352lm	6°	3000K	＞90	12V 500mA
6W	7W	484lm	352lm	6°	3000K	＞90	12V 500mA
6W	7W	484lm	352lm	6°	3000K	＞90	12V 500mA
6W	7W	484lm	352lm	6°	3000K	＞90	12V 500mA
6W	7W	484lm	352lm	6°	3000K	＞90	12V 500mA
6W	7W	484lm	352lm	6°	3000K	＞90	12V 500mA
6W	7W	484lm	352lm	6°	3000K	＞90	12V 500mA

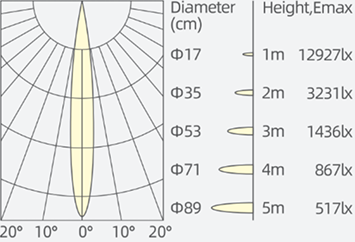

Light Distribution

Product description

Download

Product description

(中文版）产品型号AW12550...

Installation Manual

(中文版）产品型号AW12550...

IES

(中文版）产品型号AW12550...
